上海淞江減震器集團有限公司充分利用多年的設計、生產經驗，對產品進行優化組合，力求品種齊全、質量穩定。所生產的產品包括：可曲撓橡膠接頭、彈簧減震器、橡膠減震器、吊架減震器、不銹鋼金屬軟管、波紋補償器、減震臺座等，產品銷售面向全*各地，產品適用于各類水泵、風機、空調機組、發電機組、柴油機組、壓縮機組、音響、沖床、動力試驗臺、消聲室等基礎減振以及各類管道、空調箱、風機盤管、軸流風機、風管等吊裝減振。

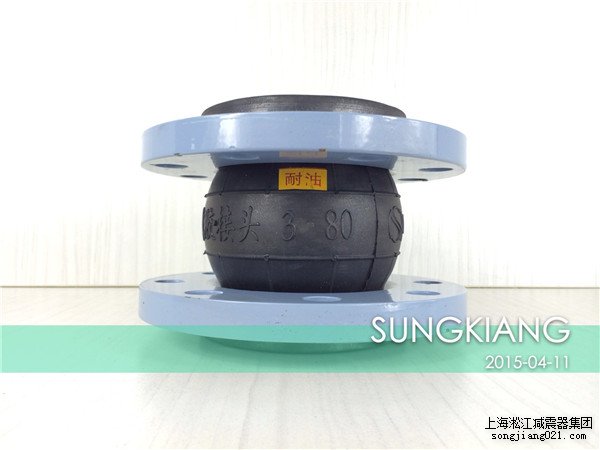

　　常用橡膠接頭又叫做橡膠接頭，橡膠軟接頭，可曲撓橡膠接頭，高壓橡膠接頭等。橡膠接頭的全部材料采用的是優質天然橡膠，具有良好的伸縮補償能力和將振降噪功能，安裝在管道線路上能夠有效的緩解管道的軸向推力或者是由于熱應力的影響造成的伸縮位移，并且與金屬類的管道補償器相比，橡膠接頭在使用過程中能夠有效的降低管道施工地區的噪音污染，這*點是金屬補償器所不能實現的。



　　通用單球體橡膠接頭的主體材料采用的是聚酯簾子布，這種高強度的連接材料能夠保證橡膠接頭自身具有足夠的承壓抗壓能力，使得橡膠接頭能夠滿足現階段*大多數的管道施工線路，其產品廣泛應用于水、電、化工、船泊系統，主要性能耐壓高、彈性好（可軸向、橫向角向位移）降噪音、質量輕、減震動、安裝方便、使用靈活、便于拆換維修，同時具有耐酸、耐堿、耐油等.點。常用橡膠接頭隨著安裝環境的不同，其連接方式分絲扣法蘭式分式、固定法蘭式和螺紋式3種；



　　1絲扣連接橡膠接頭的安裝絲扣橡膠接頭在安裝前先把需要連接的兩端管件在水平面上放平，安裝時先把絲扣橡膠接頭擰在其中*段管件上，然后在擰另*端管件，始*保持在水平面上，防止在安裝過程中受力不均而撕裂橡膠球，接下來用手或者扳手把絲扣擰緊，后要把絲扣橡膠接頭和兩端管件固定在不容易拉伸或者扭曲的物體上。



　　2卡箍連接橡膠接頭的安裝卡箍式橡膠接頭，采用卡箍來代替法蘭盤和螺栓，安裝時可將卡箍式橡膠接頭的兩管口分別套裝在要邊接的管道上，通過卡箍將橡膠接頭與管道固定連接。卡箍連接橡膠接頭拆卸時松開所述卡箍即可。從而達到補償管道因熱脹冷縮，輸水所產生的位移量之目的。它與*般的橡膠接頭相比，有以下幾個.點：



　　1、卡箍式橡膠頭節省了法蘭盤和螺栓，節約了工程的開支。



　　2、卡箍式橡膠頭管口處不需要翻邊，簡化了橡膠接頭的生產工序，節約了原材料。



　　3、卡箍式橡膠接頭簡化了安裝維修工作，提高了工作效率。



　　4、卡箍采用不銹鋼制作，具有耐腐蝕等.點通徑從DN50-400，壓力等*從0.25mpa-1.0mpa。

　　法蘭連接橡膠接頭的安裝 法蘭橡膠接頭在安裝前先把需要連接的兩端管件在水平面上放平，安裝時先把固定牢固的*端管件放平，接著讓橡膠接頭上的法蘭轉動使法蘭孔四周對齊，川上螺絲，擰上螺母，然后使另*端管件法蘭與橡膠接頭上的法蘭水平對齊，旋轉橡膠接頭上的法蘭，使法蘭口四周相對，川上螺絲，擰上螺母，水平方向使三者緊密連接，防止密封不嚴。



　　上海淞江減震器集團有限公司建立了*整套質量保證檢測體系和嚴格的售后服務管理制度，公司為保證產品質量，嚴厲打擊假冒偽劣產品，讓客戶買到安全合格放心的“淞江”品*產品。



　　請新老客戶購買產品時認準：



　　1、產品標簽說明：我公司出廠每件產品都有“淞江”品*，若無則為假冒我公司品*的產品，請及時與我公司聯系，電話：021-66977771。



　　2、產品合格證：我公司產品出廠時，所有產品必須經過嚴格的檢驗，檢驗合格才允許出廠，出廠產品持有我公司質檢部出示的“產品合格證”。



　　Shanghai Songjiang shock absorber Group Co., Ltd. take full advantage of years of design, production experience, product of combinatorial optimization, strive to complete variety, quality and stability. The production of products include: flexible rubber joint, spring shock absorber, rubber shock absorber, hanger damper, stainless steel metal hose, bellows, vibration damping pedestal and, product sales for all over the country, the products are applicable to foundation vibration of various types of pumps, fan, air conditioning unit, motor, diesel unit, compression unit, audio, punching machine, dynamic test rig, anechoic chamber, and all kinds of pipe, air conditioning box, fan coil, axial flow fan, wind pipe hoisting vibration.



　　Commonly used rubber joints, also known as rubber joints, rubber joints, flexible rubber joints, high pressure rubber joints, etc.. Rubber joint of all the materials used are of high quality natural rubber, has good expansion compensation capability and vibration and noise reduction functions, installed in the pipe line can effectively alleviate the axial thrust of pipeline or is due to the thermal stress caused by the impact force of the telescopic displacement, and compared with the metal pipe compensator, rubber joint in use process can effectively reduce the noise pollution in pipeline construction area. This is the metalcompensator cannot achieve the.



　　General rubber joint is used as the main material of polyester cord fabric, the strength of connection material to ensure that rubber joint itself has enough bearing compressive capacity, makes the rubber joint can meet at this stage most of the pipe line construction, its products widely used in water, electricity, chemical, boating system, the main performance of resistance to high pressure, good elasticity, axial and transverse angle to the displacement) noise reduction, light weight, anti vibration, easy installation, flexible use, which is convenient for disassembly and maintenance, at the same time with acid and alkali resistance, oil. Commonly used rubber joints with different installation environment, the connection of threaded flange type of fractions, fixed flange and screw type 3;



　　1 screw connection joint rubber mounting screw rubber joint before installing the need to connect the two ends of the pipe in the horizontal plane flat, installation first rubber joint screw thread in which a tube and tube at the other end of the screw in, and always maintain in the horizontal plane, prevent the installation in the process of stress and tearing the rubber ball, then by hand or wrench to tighten the screw, finally to threaded joint rubber and at two ends of the pipe body is fixed on the not easy to stretch or distorted objects.



　　2 clamp connection rubber connector installation card hoop type rubber connector, hoops are adopted to replace flanges and bolts, installation can be the card hoop type rubber joint of two pipe were set in the side of pipeline, through the clamp fixing the rubber joint and the pipeline. When the clamp is connected with the rubber joint, the clamping hoop can be loosened. In order to compensate the pipeline due to thermal expansion and contraction, the purpose of water displacement generated by the. Compared with the general rubber joints, it has the following characteristics:



　　1, clamp rubber head, flange and bolt, save construction costs.



　　2, card type rubber head nozzle hoop without flanging, simplify the production process of rubber joints, saving raw materials.



　　3, the clamp type rubber joint simplifies the installation and maintenance work, improve the work efficiency.



　　4, the clamp is made of stainless steel, with corrosion resistance and other characteristics of the path from the DN50-400, the pressure level from 0.25mpa-1.0mpa.



　　Flange joint rubber mounting flange rubber joint before installing the need to connect the two ends of the pipe in the horizontal plane flat, installation to firmly fixed to one end of the pipe flat, then let the rubber joint flange rotation so that the flange holes surrounded by alignment, Sichuan screws, tighten the nut, then make flange level alignment on the other end flanged fittings with rubber joints, rubber rotary joint flange, flange around the mouth of the relative, Sichuan on the screw, the screw on the nut, the horizontal direction of the three closely connected, prevent the seal is not strict.



　　Shanghai Songjiang shock absorber Group Co., Ltd. established a set of quality guarantee detection system and strict after-sales service management system, the company is to ensure the quality of products, to crack down on fake and shoddy products, allows customers to buy the rest assured "Songjiang" brand products of safety inspection.



　　Please look for the new and old customers to buy products:



　　1, the product label instructions: our factory each product has "Song Jiang" brand, if not for the fake company brand products, please contact with our company, Tel: 021-66977771.



　　2, product certificate: our products factory, all products must undergo a rigorous inspection, inspection and acceptance before allowing the factory, the factory products to hold my company's quality inspection department to produce the product certificate".
